ISUZU kv100 refrigerated truck

холодильный автомобиль、рефрижераторная машина для грузов、изотермический фургон с холодильным агрегатом、холодильный тягач
refrigerated truck 、reefer truck for sale 、commercial refrigerated vehicle 、cold chain transport
холодильный автомобиль для продуктов、рефрижераторная машина для фармацевтических товаров、refrigerated van price

Product Parameters

Product Attributes

Vehicle Name	Kei Ling Isuzu KV100
Horsepower	120
Overall dimensions of a car (mm)	5995×2310×3120
Box size (mm)	4075×2100×2100
Volume （m³）	17
Wheel base （mm）	3360
Passenger capacity of the cab	3 peo ple
Gross mass （kg）	4495
Curb weight （kg)	3200
Rated load mass (kg)	1100

Chassis configuration

Engine: 4KH1CN6LB Kei Ling Isuzu; Transmission: Isuzu MSB-5MT, 5 gears; Power HP: 88KW; inline-four engine; tire model: 7.00R168PR; features: air brakes, power steering, AC, electric windows and doors, ABS

Upper Configuration

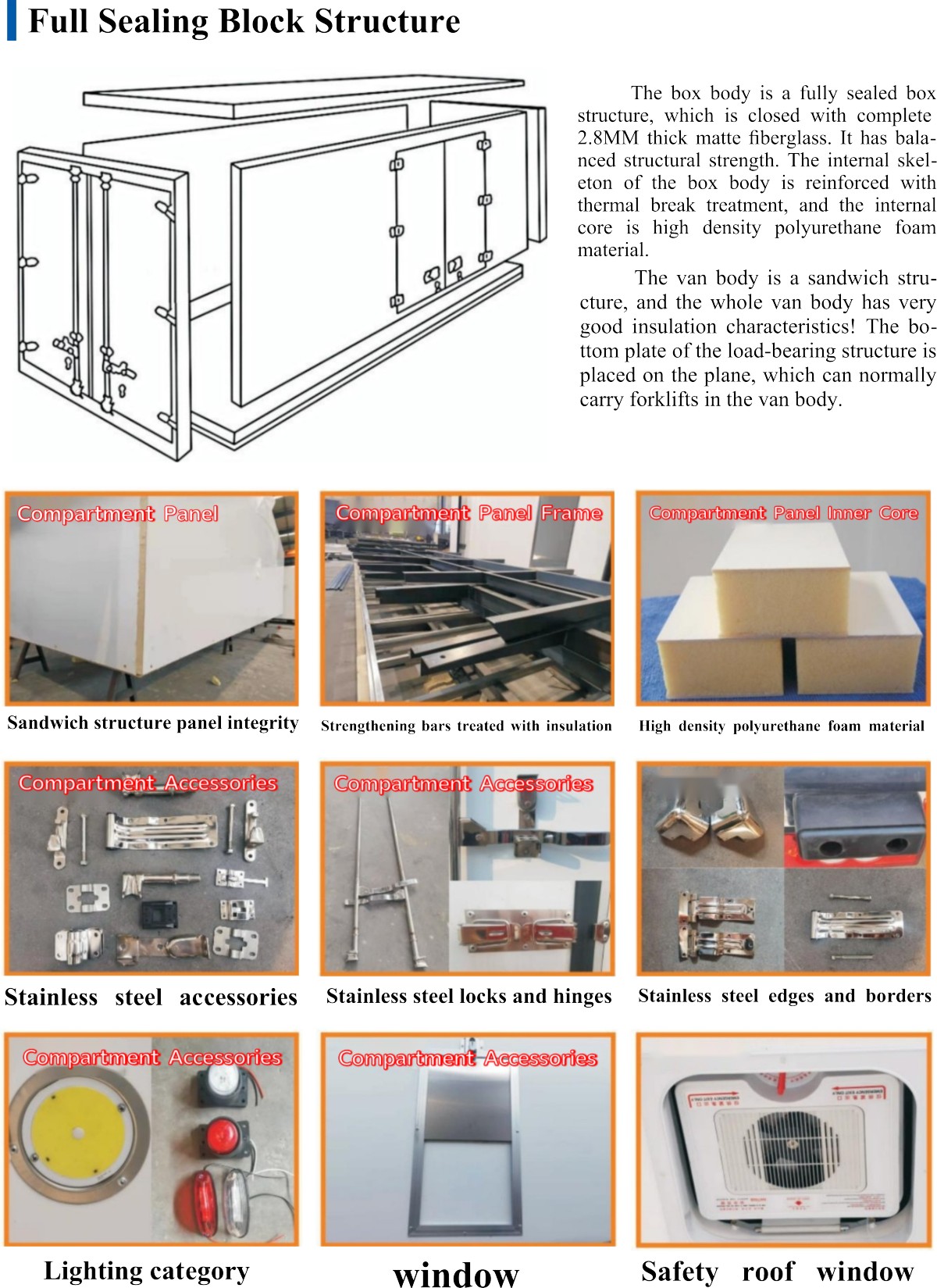

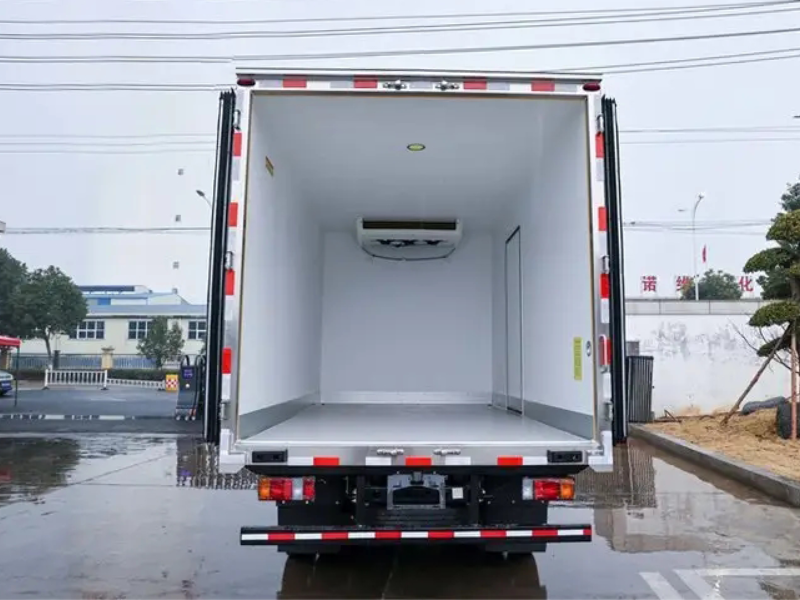

1. The refrigeration truck body adopts the international universal advanced thermal break insulation technology + our factory's patented wood technology (the keel connection is embedded with environmentally friendly waterproof wood for insulation and corrosion resistance), thermal break insulation technology! The insulation effect reaches the national A-level standard. 2. The box panel is formed in one piece by combining a galvanized pipe frame with eco-friendly waterproof wooden boards, filled with 8 cm insulation boards and reinforced with 3.0mm fiberglass. It is formed using high-strength adhesive and hot-press molding. The outer frame adopts 304 stainless steel with thickened aluminum profiles for edging, equipped with 27-inch stainless steel door locks and accessories. The panel joints are seamlessly bonded without adhesive, featuring rapid cooling, slow heat dissipation, and excellent insulation. The door has a sloped edge and single-side door design. The secondary beams are formed from 910 steel beams in one operation, secured with clamping plates. Side guardrails and rear bumpers are formed in a single molding process.
