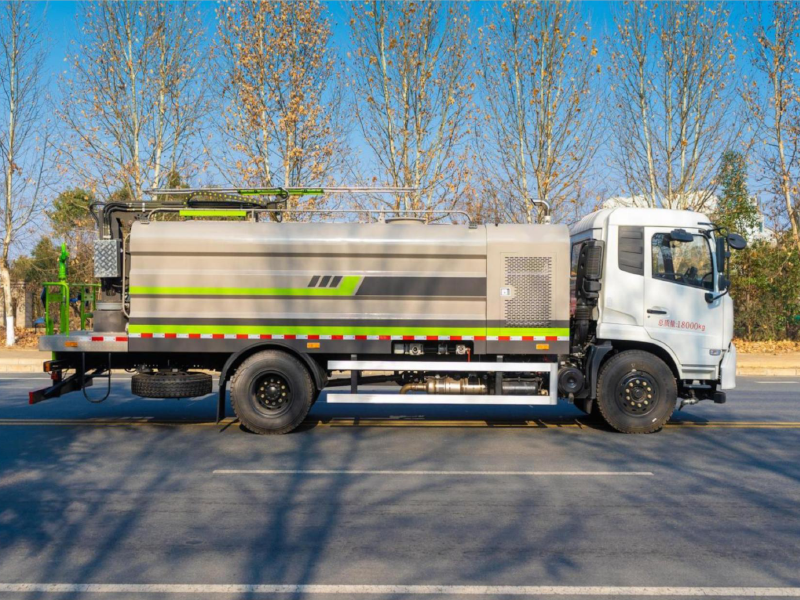

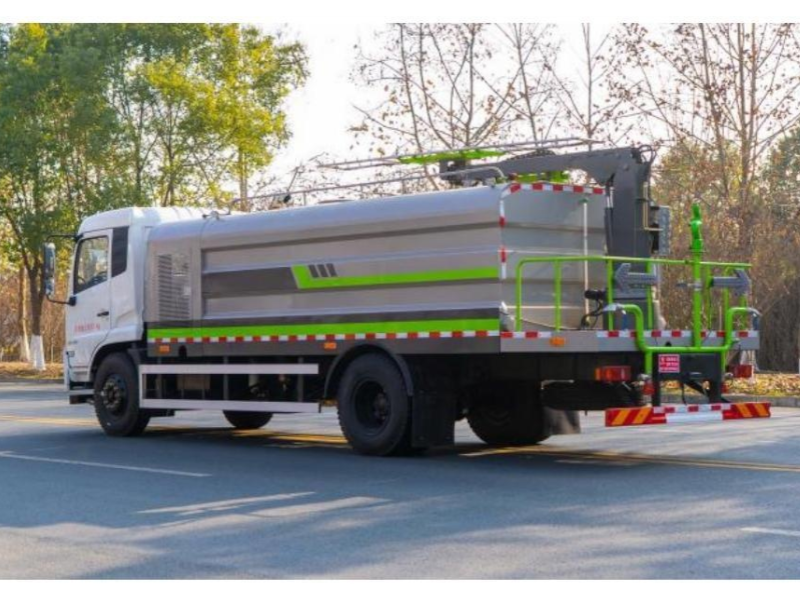

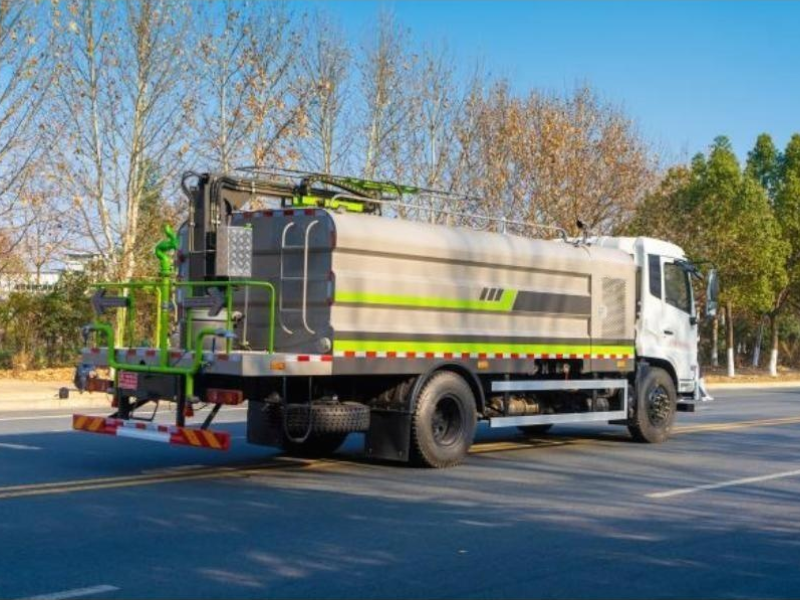

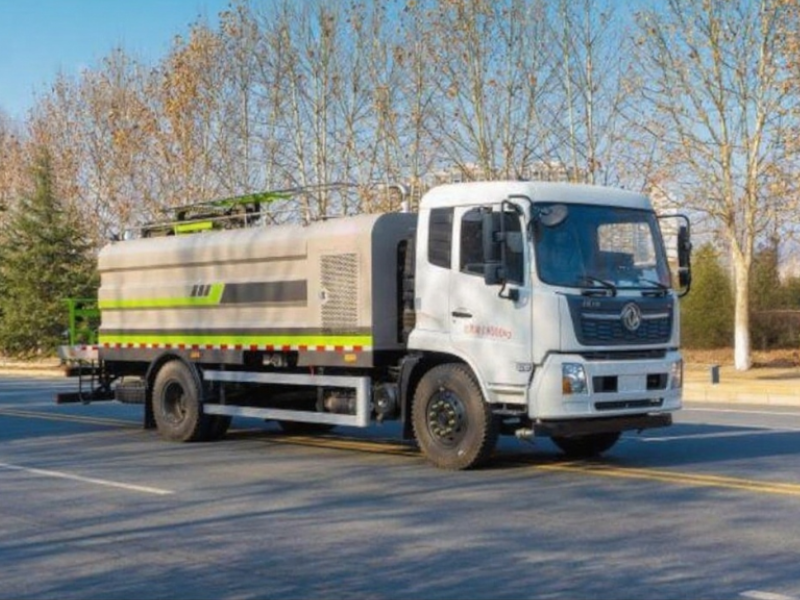

Dongfeng Tianjin Solar Photovoltaic Cleaning Vehicle
Dongfeng Tianjin solar photovoltaic cleaning vehicle with 154kw engine power, 22Mpa high-pressure pump, and intelligent control system. Ideal for efficient solar panel maintenance.
Contact Us

Product Parameters


Product Attributes

Engine Power(kw)154
Overall Dinensions(mm)Length x Width x Height

8590,8780X2550,2500X3260,3300

Gross Mass (Kg)18000
Curb Mass (Kg)9340
Wheelbase(mm)4500
Tire Specification10.00R20

High-pressure Pump

Flow (L/min)170
Pressure (Mpa)22
BrandPfaff (Germany)
Rotational Speed (r/min)1000

Low-pressure Pump

Head (m)90
Rotational Speed(r/min)1480
Model80OZBF-60/90
BrandTianyi

Performance Parameters

Cleaning Speed (Ka/h)2.5-3
lighpressure Cleaning Capacity(/h)25000
Maximum High-pressure Cleaning watate pressure(Mpa )17
Cleaning Water Flow(L/min)213
low-pressure Sprink flow (L/min)600-800
Low-pressure Sprinkling Width(m)≥24
Low-pressure FlushingWidth(m)≥16
Greening Cannon Range (m)38

Fuel Consumption

Driving Fuel Consumption(L/100km)21.5
Cleaning operation fuel consumpti on(L/H,L/1000 )14/5.8

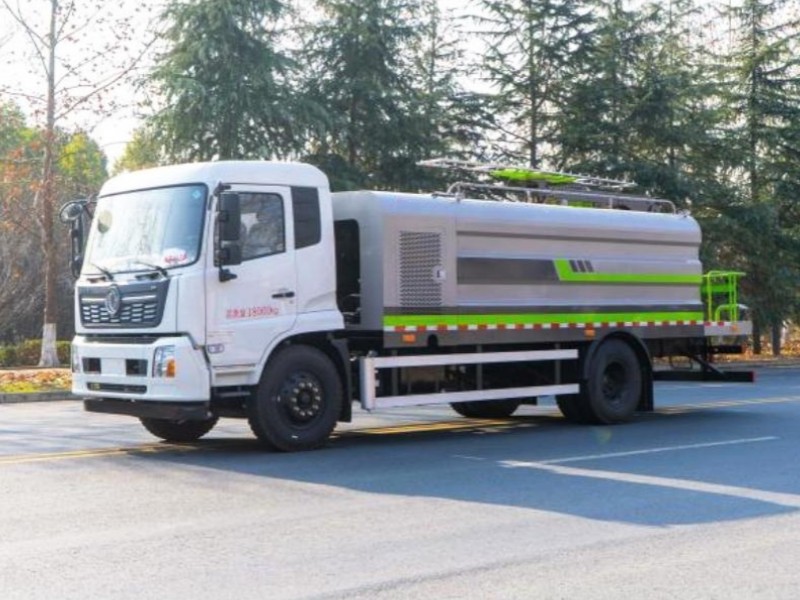

未命名 -3

●Main structure of photovoltaic panel cleaning car:

1.Dongfeng Tianjin chassis, matched with Cummins 230hp engine & Fast 8-speed transmission, suitable for complex terrains and various operation sites.

2.Auxiliary engine: Guosan Jiangling brand, 87hp full-power output, connected to high pressure water pump & hydraulic oil pump. The latter powers the mechanical arm’s hydraulic system; the former supplies high-pressure water for flushing.

3.Mechanical arm system: Composed of 2 main arms, 1 telescopic arm & cleaning bracket, enabling 180° full rotation & axial flipping of the bracket. Operable in cab or via handheld remote.

4.Independent high/low-pressure water systems: High-pressure for cleaning; low-pressure for conventional sprinkling (front flush, rear sprinkle, side spray, greening cannon). Rear has large work platform, optional fog cannon for multi-purpose use, maximizing utilization.

5.Optional heating system: Uses imported direct-injection burner with in-tank circulation pipelines, heating water at low temperatures.

6.Cleaning system: Water spray bracket & optional roller brush. High-pressure, large-flow water from nozzles + brush rolling cleans sand, dust & stains on PV panels.

7.Intelligent control system: All operations via electronic hydraulic/pneumatic control, operable in cab, saving manpower.

●Equipment Parameters for Cleaning Function:

1.Tank: Square, 5mm steel plate, 14m³ volume. Middle partition with bottom through holes, suppressing waves to reduce liquid impact during movement.

2.Flushing bracket: 3.5m long, with 40 high-pressure nozzles.

光伏清洗车分解图

产品优势
